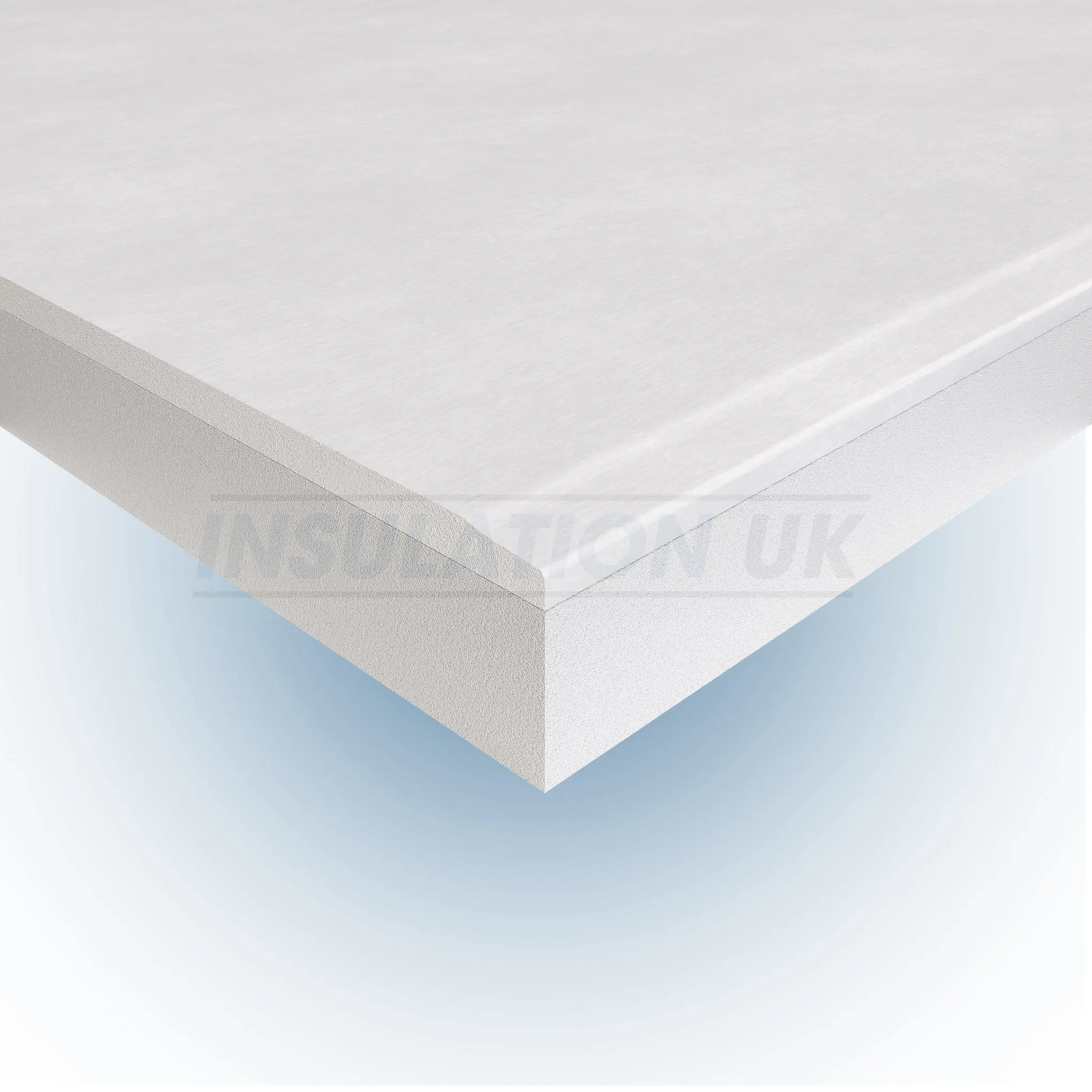

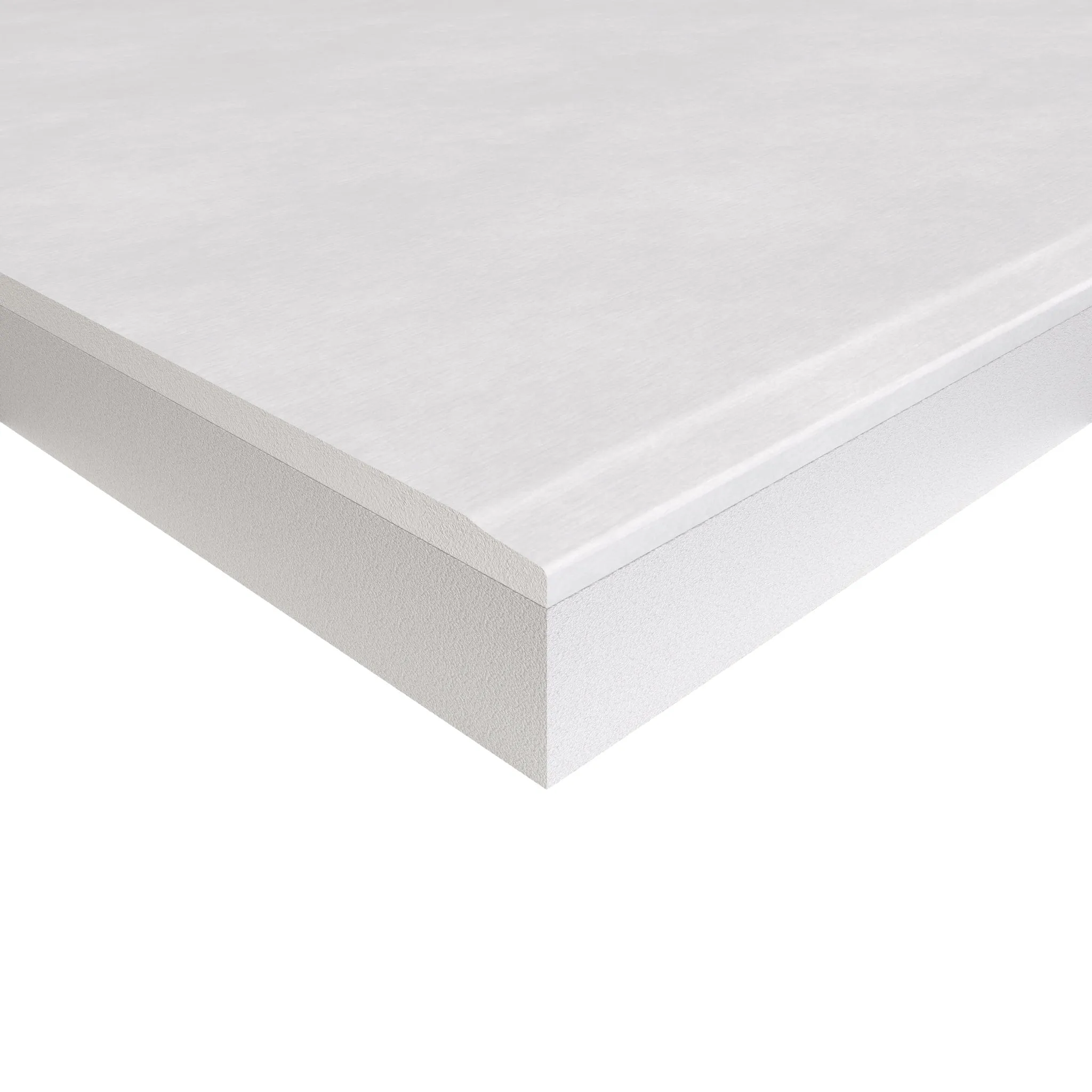

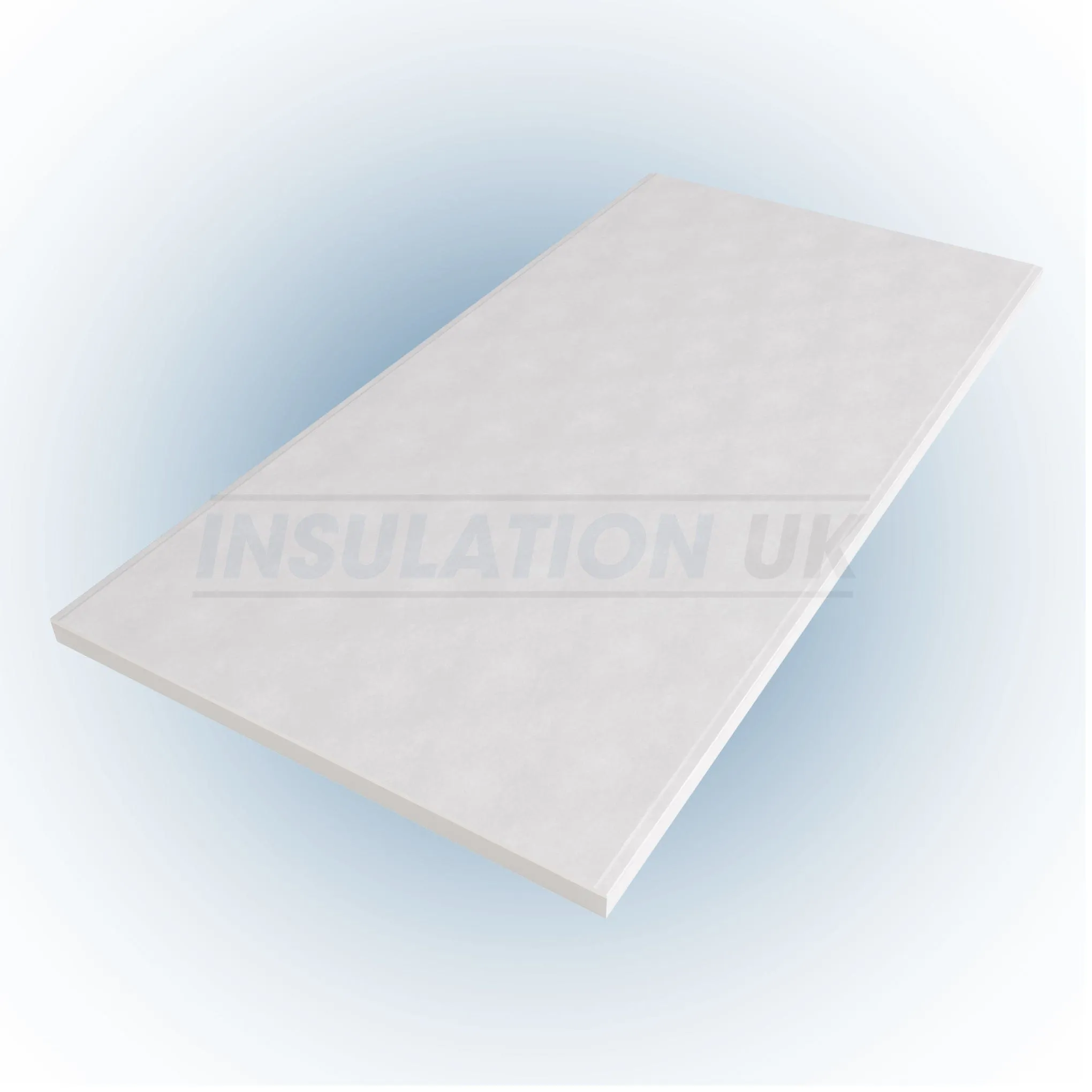

Tekwarm EPS Insulated Plasterboard

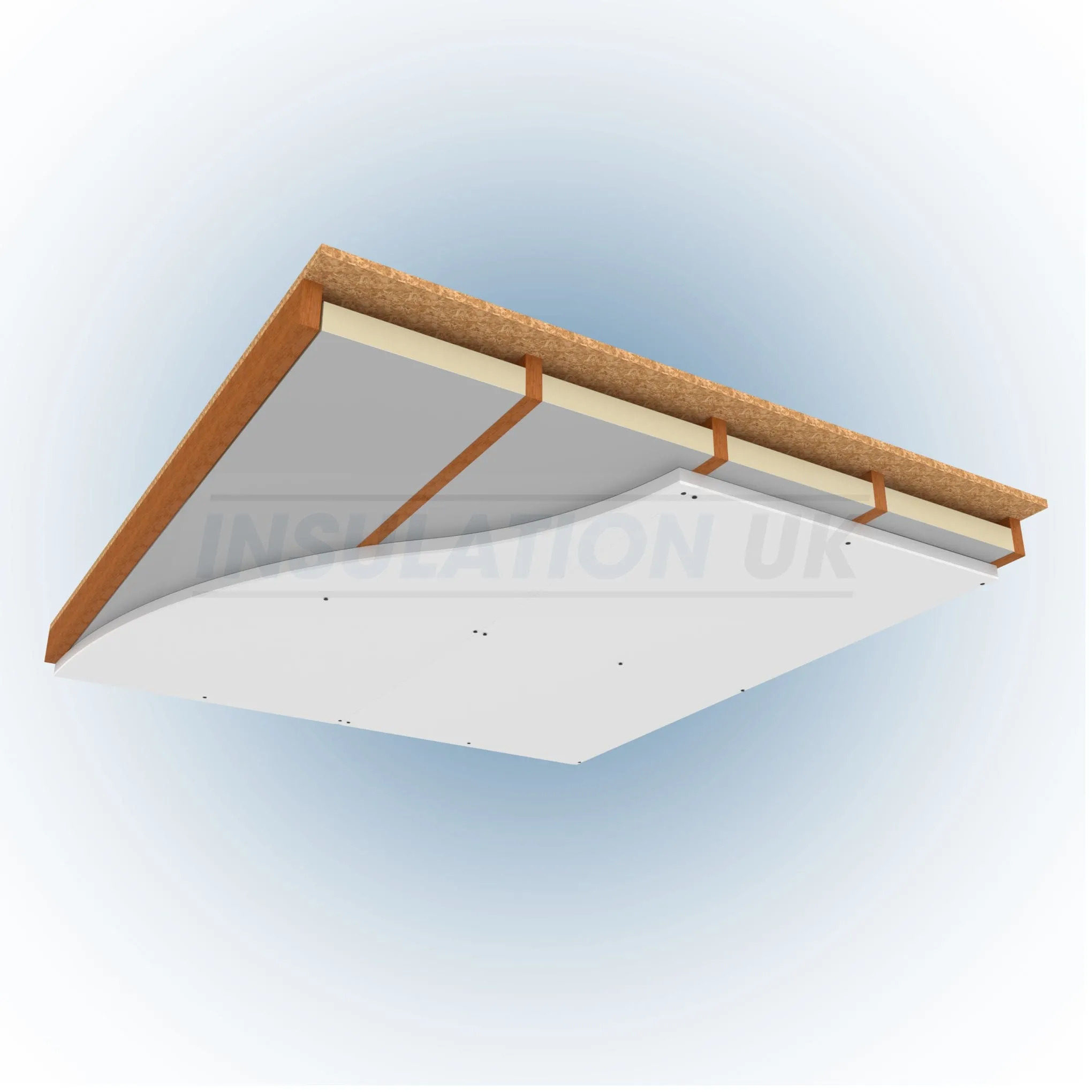

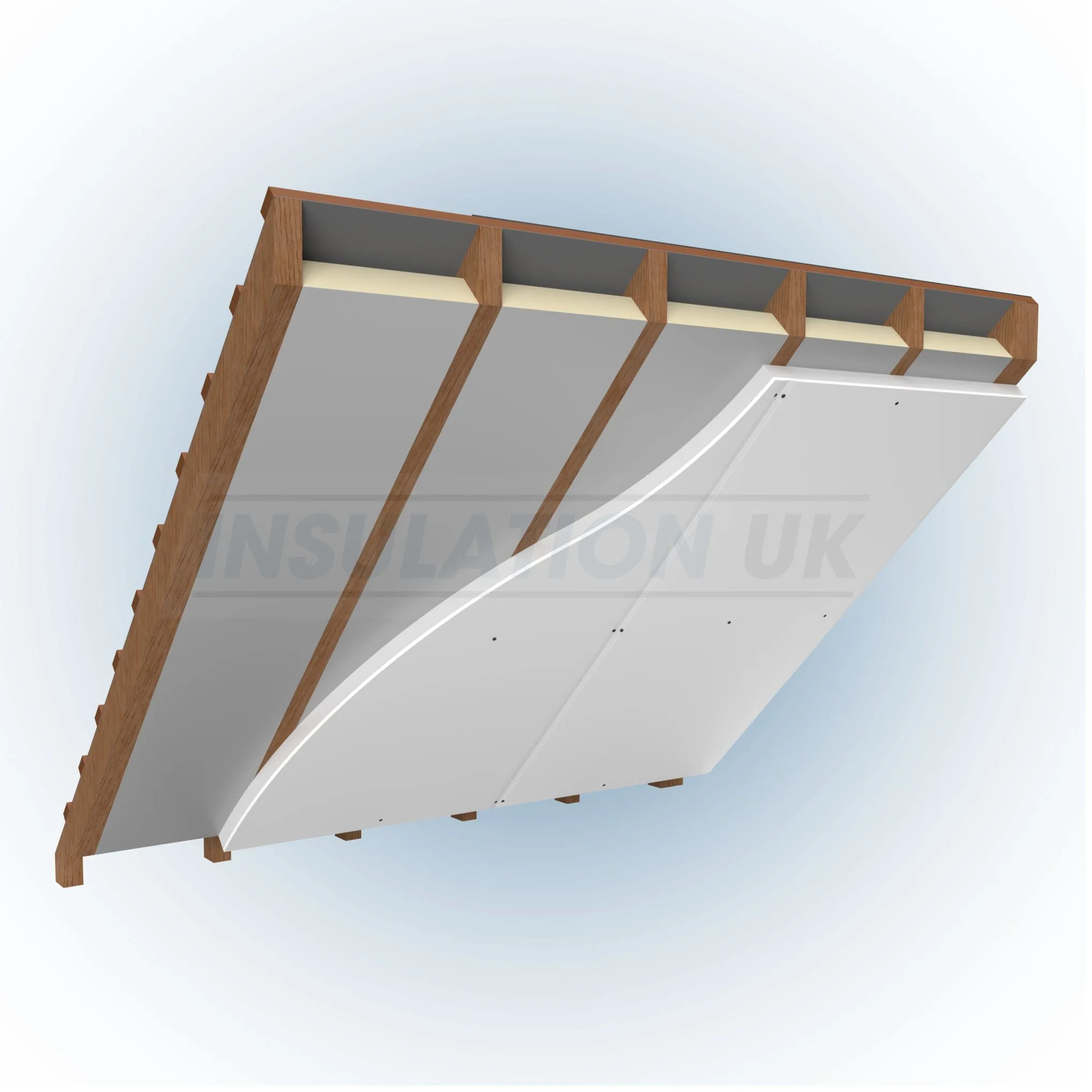

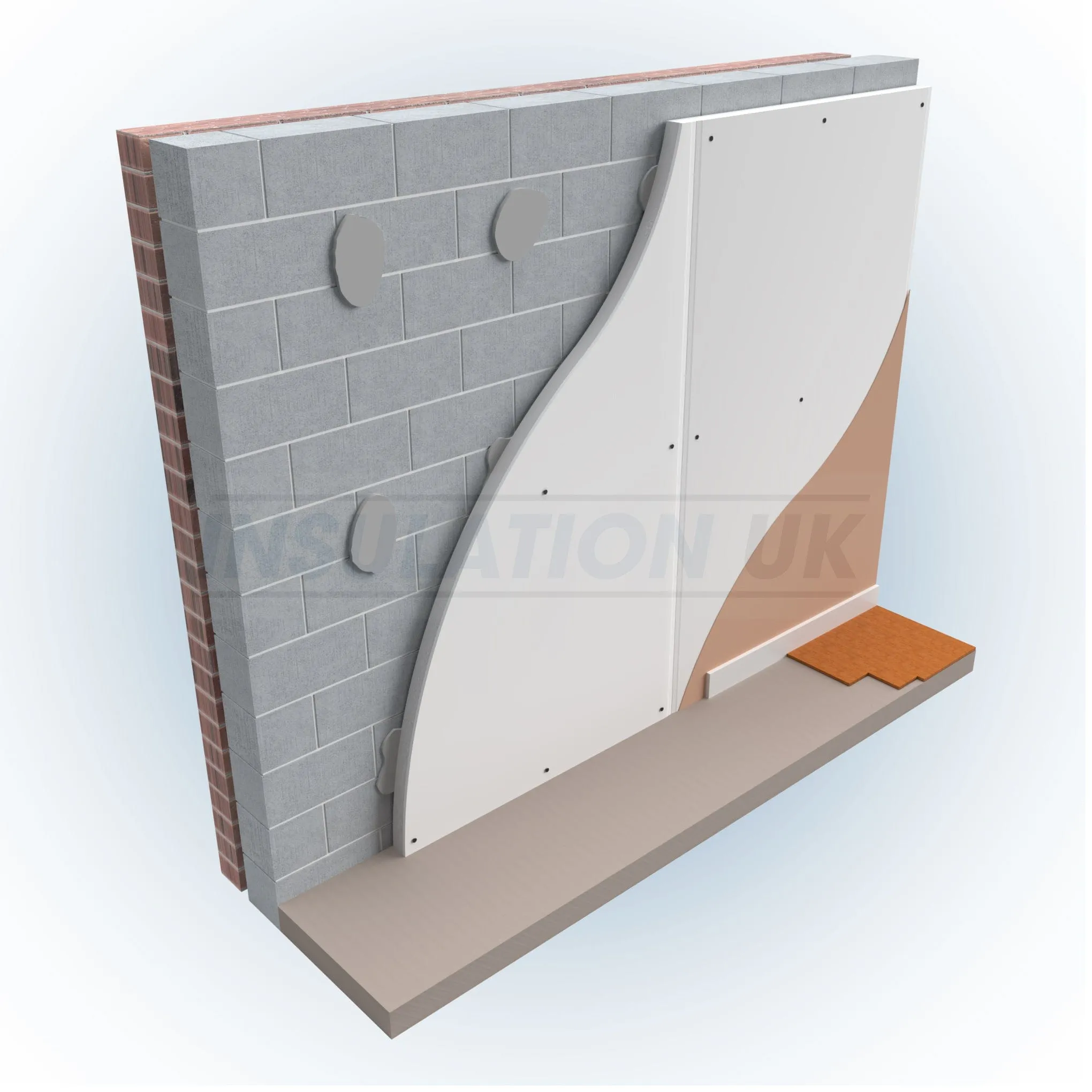

Tekwarm EPS Thermal Laminate Board is an innovative solution that combines a high-grade EPS (Expanded Polystyrene) E grade insulation with a durable 12.5mm tapered edge plasterboard, offering unparalleled thermal efficiency for roofs and internal wall linings. Tekwarm EPS Insulated Plasterboard provides a seamless 2-in-1 solution to insulate and dryline your spaces with ease and reliability.
Why Choose Tekwarm EPS Insulated Plasterboard?
- Dual-Purpose Design: A single solution for insulation and dry lining, streamlining construction projects.
- Superior Thermal Efficiency: Boasts a thermal conductivity of 0.038 W/mK, ensuring your space stays warm in the winter and cool in the summer.
- Versatile Application: Suitable for a wide range of construction projects, meeting stringent building regulations.
- Sustainable Choice: With an ODP of zero and a GWP of less than 5, it’s an eco-friendly option for modern construction needs.
Size Variants:
| Insulation Thickness (mm) | R Value (M²K/W) | Approx Weight (kg per board) | Nominal Overall Thickness (mm) |
|---|---|---|---|
| 13 | 0.42 | 24.05 | 25.5 |
| 25 | 0.74 | 24.48 | 37.5 |
| 30 | 0.87 | 24.92 | 42.5 |
| 40 | 1.13 | 25.30 | 52.5 |
| 50 | 1.39 | 25.78 | 62.5 |
| 60 | 1.66 | 26.21 | 72.5 |
| 70 | 1.92 | 26.53 | 82.5 |
| 80 | 2.18 | 27.08 | 92.5 |
| 90 | 2.45 | 27.51 | 102.5 |
| 100 | 2.71 | 27.94 | 112.5 |
General Specifications:
| Specification | Details |
|---|---|
| Width | 1200mm |
| Length | 2400mm |
| Coverage | 2.88m² per board |
|
Lambda (Thermal Conductivity) |
0.038 W/mK |
Installation & Handling
Designed for ease of installation, Tekwarm boards are adaptable to various construction environments, emphasizing mechanical fixing for stability and safety. It is crucial to adhere to the provided installation guide to achieve optimal results and compliance.
Limitations & Safety
Tekwarm boards are not suitable for damp or humid conditions and feature a flame retardant additive for enhanced safety. For best practices, refer to the health and safety data sheet.
The Benefits of Using Insulated Plasterboard
Insulated plasterboard combines insulation and plasterboard into one efficient product, offering distinct advantages over separate installation:
-
Superior Energy Efficiency: The integrated insulation in insulated plasterboard minimizes thermal bridges, significantly improving a building's heat retention. This enhanced thermal efficiency is crucial for reducing energy consumption and heating costs, leading to a more sustainable and cost-effective living environment.
-
Space-Saving Design: Its composite structure saves valuable space, enabling thinner wall constructions without sacrificing insulation performance, which is particularly beneficial in renovations and small spaces.
-
Installation Efficiency: The all-in-one product streamlines the installation process, saving time and labour costs compared to fitting insulation and plasterboard separately.
-
Cost-Effectiveness: Initial costs are often offset by lower installation expenses and substantial long-term savings in energy bills due to the product's superior thermal efficiency.
-
Enhanced Building Performance: In addition to energy savings, insulated plasterboard can improve moisture management and sound insulation, enhancing indoor comfort.
-

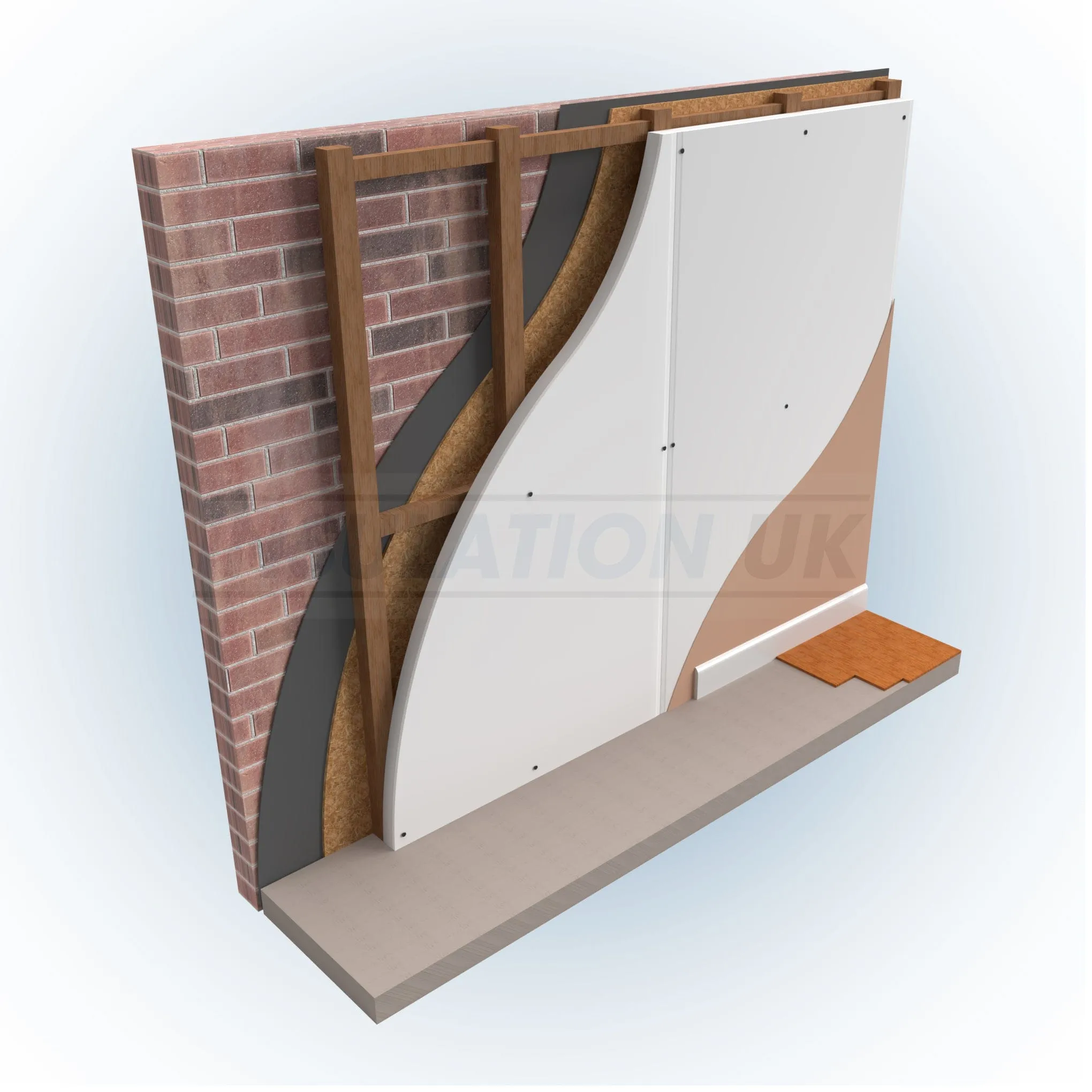

Flexibility in Thermal and Acoustic Comfort: When installing onto a stud wall, there's an opportunity to add extra insulation between the studs, boosting both thermal and acoustic performance. This additional layer can significantly enhance a building's energy efficiency and provide a quieter, more comfortable indoor environment. Whether aiming for higher thermal resistance (R-value) to keep heat in during winter and out during summer or seeking to minimise noise transmission between rooms, this added insulation maximises the wall’s performance.
Insulated plasterboard not only simplifies the construction process but also provides a versatile and effective way to enhance a building's thermal and acoustic comfort. This makes it an ideal choice for those looking to improve energy efficiency and indoor living conditions.
