Archived:

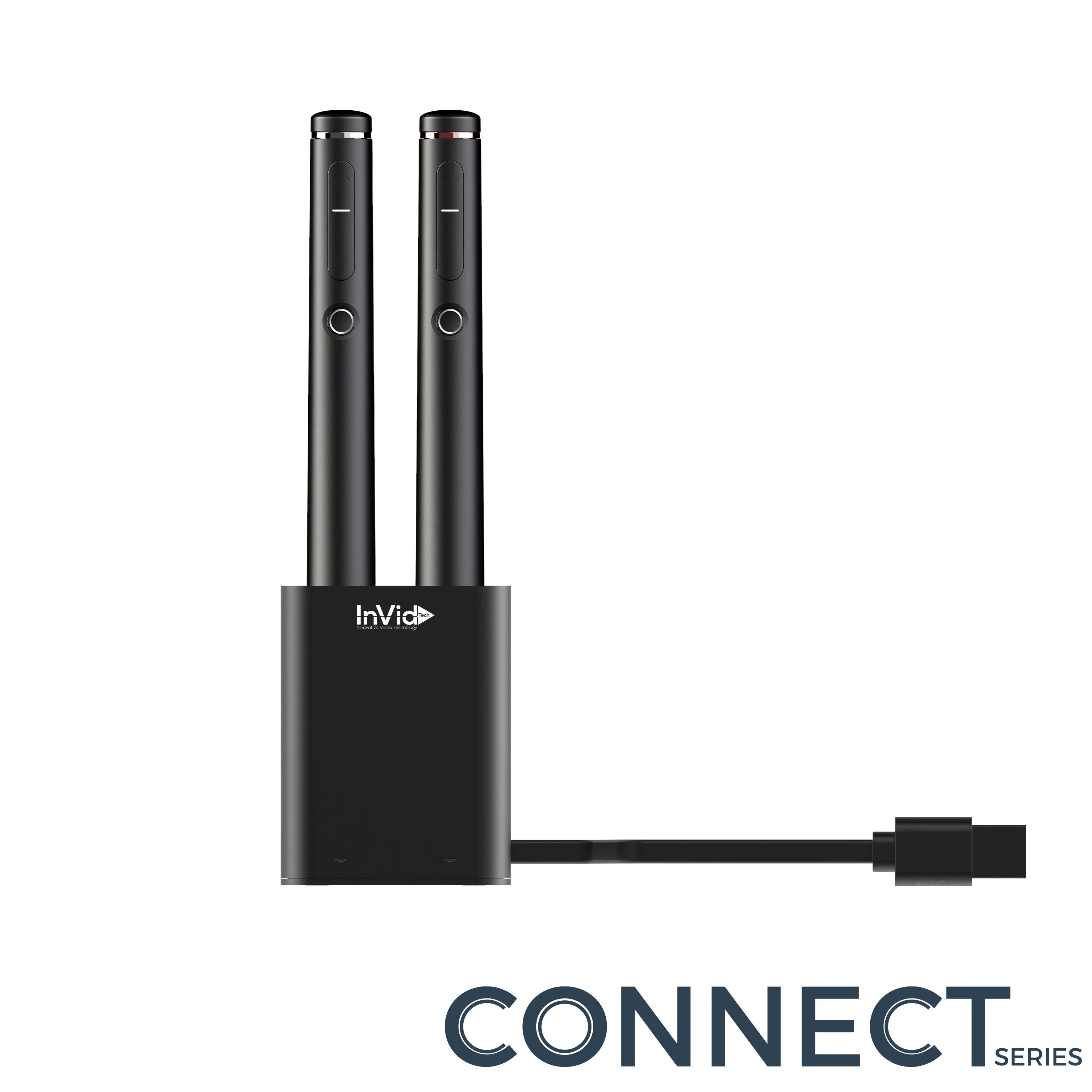

My ConnectBoard Pens 2pk with Charging Mount
(Included with MyConnect Boards 65/75/86")
Spec
Standard Specifications |
|
|
Technology |
Active Capacitive Coupled |
|
Button |
3 buttons(Previous page,Next page,Air Mouse) |
|
Virtual Laser |
Support |
|
Erase |
Support |
|
Pressure Sensitive |
Support |
|
Palm Rejection |
Support |
|
Wireless Charging |
Support |
|
The diameter of the pen nib |
3mm |
|
Accuracy |
≤1.5mm |
|
Remote control |
RF 2.4GHz |
|
Communication distance |
12m(without masking object) |
|
Pairing |
Pairing by button |
|
Indicator light color |
Yellow/White |
Power |
|
|
Lithium battery |
3.7V/350mAH（Cannot use dry battery） |
|
Endurance time |
Continuous use for 8 hours |
|
Standby time |
20 Days |
Physical Specifications |
|
|
Dimension(package) L×W×H |
9.7 x 3.3 x 2.1in (247×86×55mm) |
|
Net Weight |
.06lbs (30.5g) |
|
Gross Weight(Including two pen&charger) |
.5lbs (249g) |
Environmental Conditions |
|
|
Operation Temperature |
32°F - 104°F (0℃- 40℃) |
|
Operation Humidity |
10% - 90%RH |
|
Storage Temperature |
-4°F - 140°F (-20℃ - 60℃) |
|
Storage Humidity |
10% - 90%RH |
|
Altitude |
Below 5000 meters |
Accessories |
|
|
Charger |
×1 |
|
Battery |
×2 |
|
Spare Pen Nib |
×4 |
Ordering
CON-PEN2PACK: My ConnectBoard Pens 2pk
